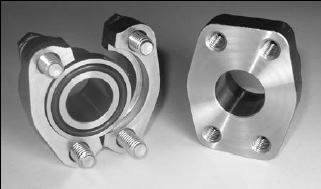

Split-Flange Clamps design gives you
a tilt proof clamps. By locating the plane of
the Split-Flanges Clamps half bolt centerlines
so that it passes through the center of
force of the flanged head on the
Split-Flange Clamps half, unbalanced moments
are eliminated. This design principle
prevents tilting of the clamps half and
extrusion of the O-Ring. It conforms to SAE
Standard J518.
Hose assembly removal is facilitated by the
rounded end design of the clamps halves.
Loosening of the four bolts and removal of
one bolt permits the end of one clamps half
to be pivoted to the side about the other
bolt. This opens the clamps fully and allows
the flanged head assembly to be removed. It
also allows the easy assembly of the hoses in
close quarters.
Use of the highly
efficient and widely used static O-Ring seal
eliminates the use of gaskets, tapered
threads and sealing compounds. There are no
spiral leakage paths. The connector may be
assembled with small automotive wrenches in
tight quarters with low torque requirements.
Large wrenches and high assembly forces are
not required.
1
: Clean the sealing surface
Clean the sealing
surface and make certain the O-Ring groove
is free of chips, dirt, nicks, etc. Foreign
material prevents a proper seal.
2
: Make sure of full
flangeS-to-head contact
Check O-Ring to see
that it is properly seated to prevent
cutting during installation. Push clamp
halves inward as far as they will go so as
to give greatest possible bearing area
necessary to long service life.
3
: Tighten bolts evenly
and torque to specs
This ensures even distribution of the
necessary sealing forces on the clamps and
O-Ring head.
