HIGH PRESSURE COMPACT
SERIES |
|
|
|
|
|
|
|
Features : |
|
|
Pressure Rating
Up to 6000psig (4130bar)
at 700f(200
C) |
|
|
Temperature Rating
up to 3750F (1900C) with
viton seal standard. |
|
|
Suitable for gas and
liquids. |
|
|
Blow-out resistant and stop
reversing flow design. |
|
|
Body Materials
available in 316 stainless steel,
alley 400, and carbon steel. |
|
|
100% factory tested. |
|
|
|
|

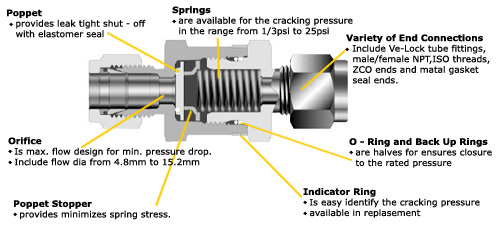

No. |
Component |
Valve Body Materials |
|
316 Stainless Steel |
Carbon Steel* |
Alloy 400 |
|
Grade / ASTM Specification |
|
1 |
Inlet Body |
316SS / A479 |
Carbon Steel |
Alloy 400 / B164 |
|
2 |
Poppet* |
Viton inserted 316SS / A479 |
Viton inserted Alloy 400 / B164 |
|
3 |
Poppet Stopper |
316SS / A479 |
|
4 |
Spring |
302SS / A313 |
Alloy 400 / B164 |
|
5 |
O - Ring |
Viton Standard |
|
6 |
Back Up Ring |
PTFE |
|
7 |
Indicator Ring |
Stainless Steel |
|
8 |
Outlet Body* |
316SS / A479 |
Carbon Steel |
Alloy 400 / B164 |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
 |
|
|
|
|
|
|
|
|
