Metal
Bonded seals represents a
combination of metal washer and elastomer sealing lip vulcanised
to the edge of the metal part to
seal spiral leakage in bolted
connections. E.g., pipe

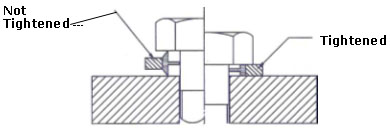

connections and couplings. When
the bolted connections is
tightened, the sealing lip is
pressed against the flat surfaces.
The metal washer ensures that the
components to be connected are
reliably and securely held. The
thickness of the washer limits the
compression of the elastomer metal
bonded seals,
eliminates any over torque of the
joint, thereby ensuring a reliable
sealing system. The internal
pressure increases the sealing
force by energizing the sealing
lip.
Application
Application Media
Industrial Hydraulic lines and
fittings
Hydraulic Oil
Automotive Hydraulic and Fuel lines
Lubrication Oil
Hydraulic Equipment's
Edible Oil
Pipe connections, couplings, threaded
bolts and studs.
Water, Air
Earth moving machinery and equipments
Gas
Construction machinery and equipments
Acid and Alkalis
Marine cranes and equipments
Advantage
OF METAL BONDED SEALS
Use in wide range of temperature
application (-30°C to 200°C)
Use in wide range of pressure
application ( 25 to 1000 bar)
Unique design and process prevents
failure of metal to rubber bonding.
REUSABLE
Oil, Heat, Ozone resistant
Cost effective
Versatile, applicable to all threaded
bolts, studs and clearance holes
Various types of metals bonded seals and elastomers
available
Useable for overhead installation
Can be used to plain surfaces where
housing is not provided for the sealing
lip
