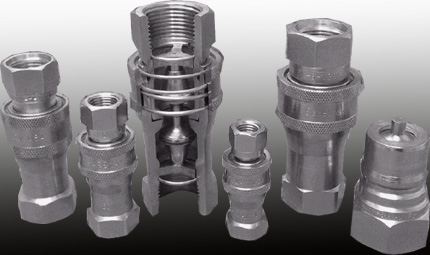

This Type Of Couplings Simply Work
On Push & Pull Principle, The
Adaptor When Pushed To The Coupler
Is Accurately Held By The Self
Locking Arrangement Resulting In A
Positive & Leaf Proof Connection.
This Action Simultaneously Opens
The Valve & Fluid Flow Starts.
To Disconnect ,Pull Back The
Sleeve Of The Coupler ,The Adaptor
Ejects Out And The Valves Shuts
Off Automatically, Valves Are
Provided In Type One Way Sealing &
Two Way Sealing.
Quick Connect / Release Couplings
Eliminate Valves And Screw On
Fittings In Many Pnumatic,
Hydraulic And Chemical Systems.
They Permit Easy, Safe, Quick &
Reliable Connections Between
Delivery Lines, Pressure Hoses Etc
And A Wide Range Of Equipment With
Couplings; Connection or
Disconnection Of Fluid Systems Is
As Easy As Plugging In An Electric
Gadget.
MATERIALS OF CONTRACTION OF
Quick Release
Couplings
–
AS PER STANDARD
BODY
:-
AVAILAVLE IN BRASS /C.S.-CHROME
PLATED (FROM BAR STOCK ONLY
ALSO AVAILABLE IN S.S. -304 &
S.S.-316 (FROM BAR STOCK ONLY)
SPRING :-
AVAILABLE IN SPRING STEEL S.S.-304
/ S.S.316 AS REQUIRED
BALL
:-AVAILABLE IN STEEL ,S.S.-304 &
S.S.-316
SEAL MATERIALS
:-AVAILABLE
IN NITRILE, VITON, NEOPRENE,
SILICON MATERIALS
SIZES :-
Sizes Are Mainly From 1/8 Inch Up
To 2 Inch Used By Various
Industries & Having End
Connections Like Pipe Thread Male
/Female, Hoses Shank Etc.
There Are Three Types Of Quick
Release Couplings Mainly Used As
Follows:-
THROUGH BORE Quick Release
Couplings – MAKE – “ ME
– T”
SINGLE CHECK VALVE Quick
Release Couplings( ONE WAY
SHUT OFF TYPE)
– MAKE – “ ME –
V”
DOUBLE CHECK VALVE Quick
Release Couplings (TWO WAY
TYPE )
